MaaS Collaboration Hub (MCH)

At a Glance

• Category: Cloud & Marketplace Solutions
• Primary environment: Cloud MaaS Marketplace
• Documentation focus: Design reference
• Maturity: TRL 4, moving toward TRL 5–6 (first release, M18)
• Related architecture docs: Reference Architecture Guide, Environments

Purpose

The MaaS Collaboration Hub (MCH) is a cloud-based component that facilitates seamless interaction between providers and consumers within the MaaS ecosystem. As part of the Cloud MaaS Marketplace and fully integrated into the MaaSAI system, the MCH enhances accessibility and streamlines secure messaging, task management, file sharing and virtual meetings. MCH is composed of several internal components to deliver its full range of functionalities.

Primary Actors

The D5.2 usage viewpoint defines roles, permissions, constraints, a role-task matrix, and a use case diagram for this solution.

• Admin: Responsible for creating organizations, creating MaaS Providers and MaaS Consumers and assigning MaaS Providers and MaaS Consumers to organizations
• MaaS Provider: Responsible for initiating and managing collaboration with MaaS consumers, including sharing all the necessary information and data.; constraint: Must be registered and authorized user; access is limited to assigned or shared workspaces only.
• MaaS Consumer: Responsible for participating in collaboration activities with MaaS Providers, including sharing all the necessary information and data; constraint: Must be registered and authorized user; access is limited to assigned or shared workspaces only

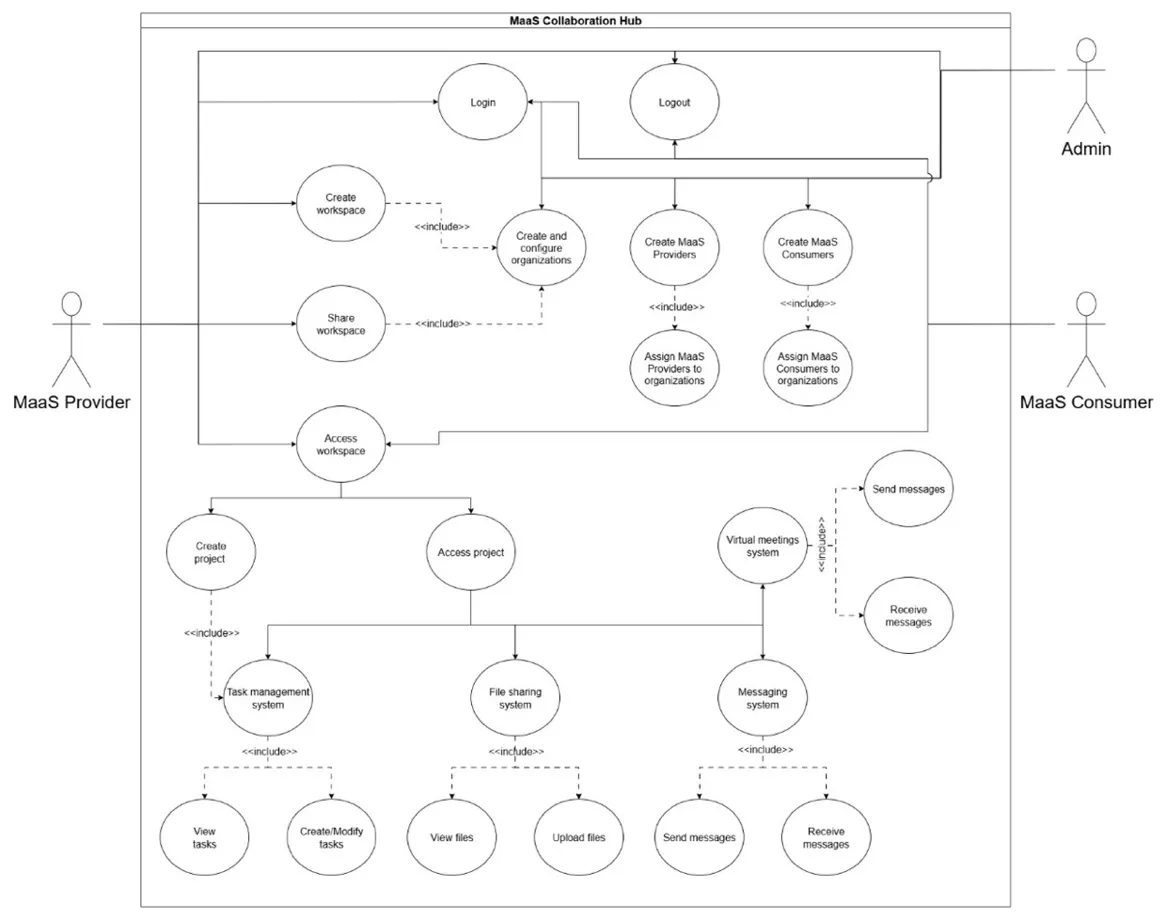

Use-case diagram extracted from MaaSAI deliverable D5.2.

Functional Components

MCH brings together workspace management, messaging, task coordination, file sharing, and meeting services behind one collaboration portal. The functional view highlights how user actions traverse the collaboration backend and storage services to keep project workspaces synchronized and secure.

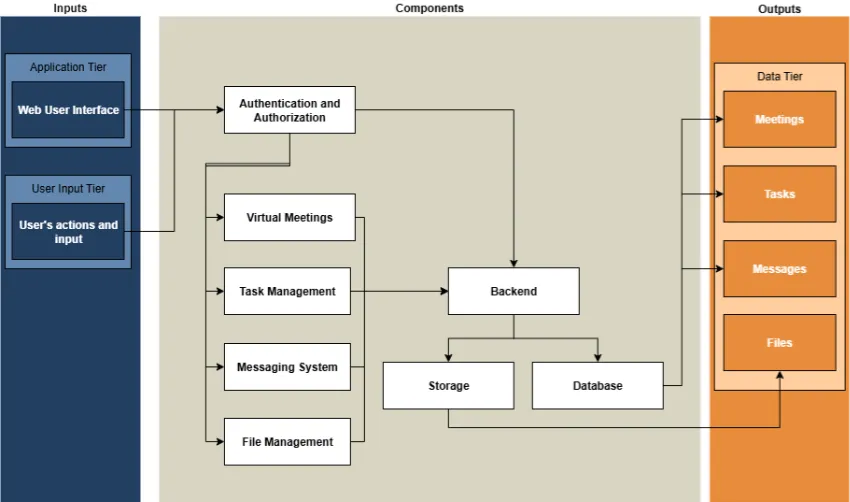

Functional components diagram extracted from MaaSAI deliverable D5.2.

Design Baseline

• Frontend: The primary user interface of the MCH, offering a portal for users to access and interact with its features. It serves as the main point of engagement for both providers and consumers.

• Backend: Responsible for business logic, orchestration of services and communication among internal components. It manages all operations, event handling, feature execution and integration with external services.

• Storage: Manages the data of MCH, including user information and data from integrated external services. It ensures secure and reliable storage for all MCH internal components.

The system preliminary architecture is designed using a modular and containerized approach, ensuring scalability, maintainability, and ease of deployment. The key components interact through secure API calls.

• Frontend: The frontend application, hosted within its own Docker container, provides the user interface for all client interactions. It communicates exclusively with the backend through secure API calls. This separation allows for independent development and scaling of the user interface and server-side logic.

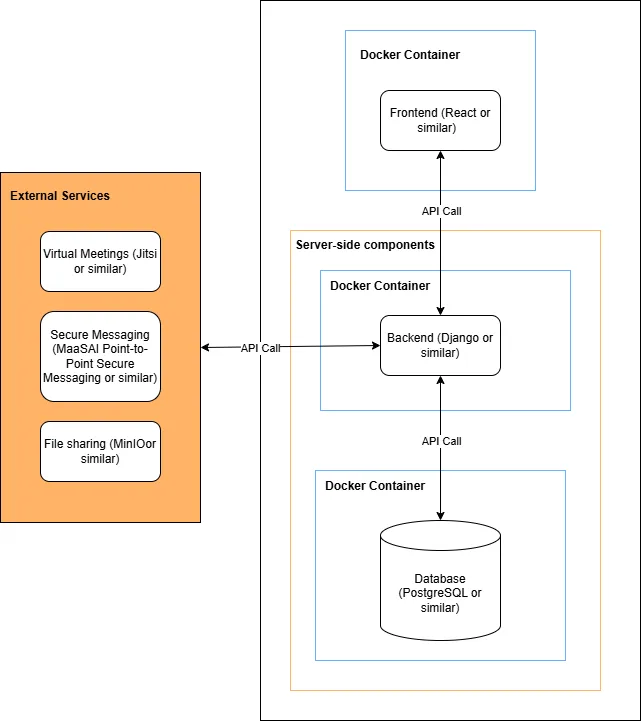

Architecture diagram extracted from MaaSAI deliverable D5.2.

Technology Stack

MCH follows a client-server architecture with a decoupled frontend and backend connected via a RESTful JSON API, with real-time events delivered over a WebSocket channel.

Category	Technology
Frontend	Vue 3, Vite, PrimeVue component library, state management via Pinia
Backend	Laravel 11 on PHP 8.2 (REST API, business logic, role enforcement, event broadcasting)
Data	PostgreSQL 16; MinIO (S3-compatible) object storage for file uploads
Identity	Keycloak 26 (authentication, JWT validation, role-based access control)
Real-time & meetings	Soketi (Pusher-compatible WebSocket server) with Laravel Echo; Jitsi Meet for video conferencing
Containerisation	Docker / Docker Compose

Integrations & External Dependencies

MCH sits at the operational layer, downstream of the Cloud MaaS Marketplace (CMM): when CMM processes a MaaS agreement, it will trigger the automatic provisioning of a workspace pre-populated with the relevant organisations and users. In this release the CMM order intake is partially implemented through a dedicated integration endpoint. Required external dependencies are PostgreSQL 16, Keycloak 26, MinIO, the Soketi WebSocket server, Jitsi Meet, and Docker/Docker Compose for deployment.

APIs & Interfaces

The backend exposes a RESTful JSON API, complemented by real-time WebSocket events. Main endpoint groups:

• Health check, current user profile, and notifications (listing, unread count, mark as read)
• Organisations and users administration (admin role required)
• Workspaces and workspace members (admins see all workspaces; members only their own)
• Projects, tasks, messages, files and meetings, scoped at workspace and project level
• Contract summary per workspace
• POST /api/integrations/cmm/orders — receives order notifications from CMM (service authentication required)

The Vue single-page application provides a dashboard, workspace and project views with tabs for projects, members, messages, files, meetings and contract info, a notifications page, and an admin area for organisations and users.

User Interface

Representative screens of the MCH web interface in the first release:

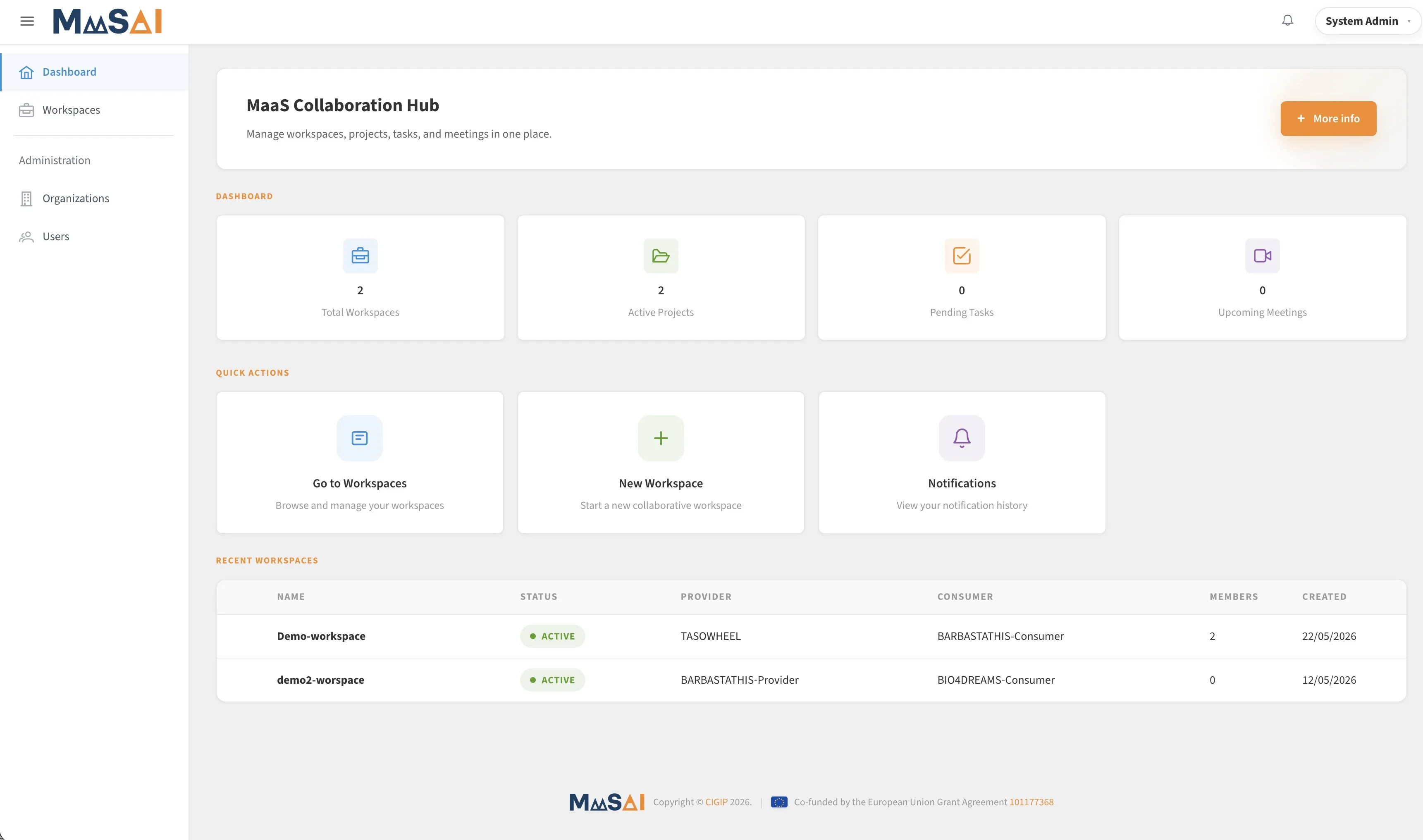

MCH dashboard (admin view) with platform summary statistics and quick actions — MaaSAI deliverable D6.1.

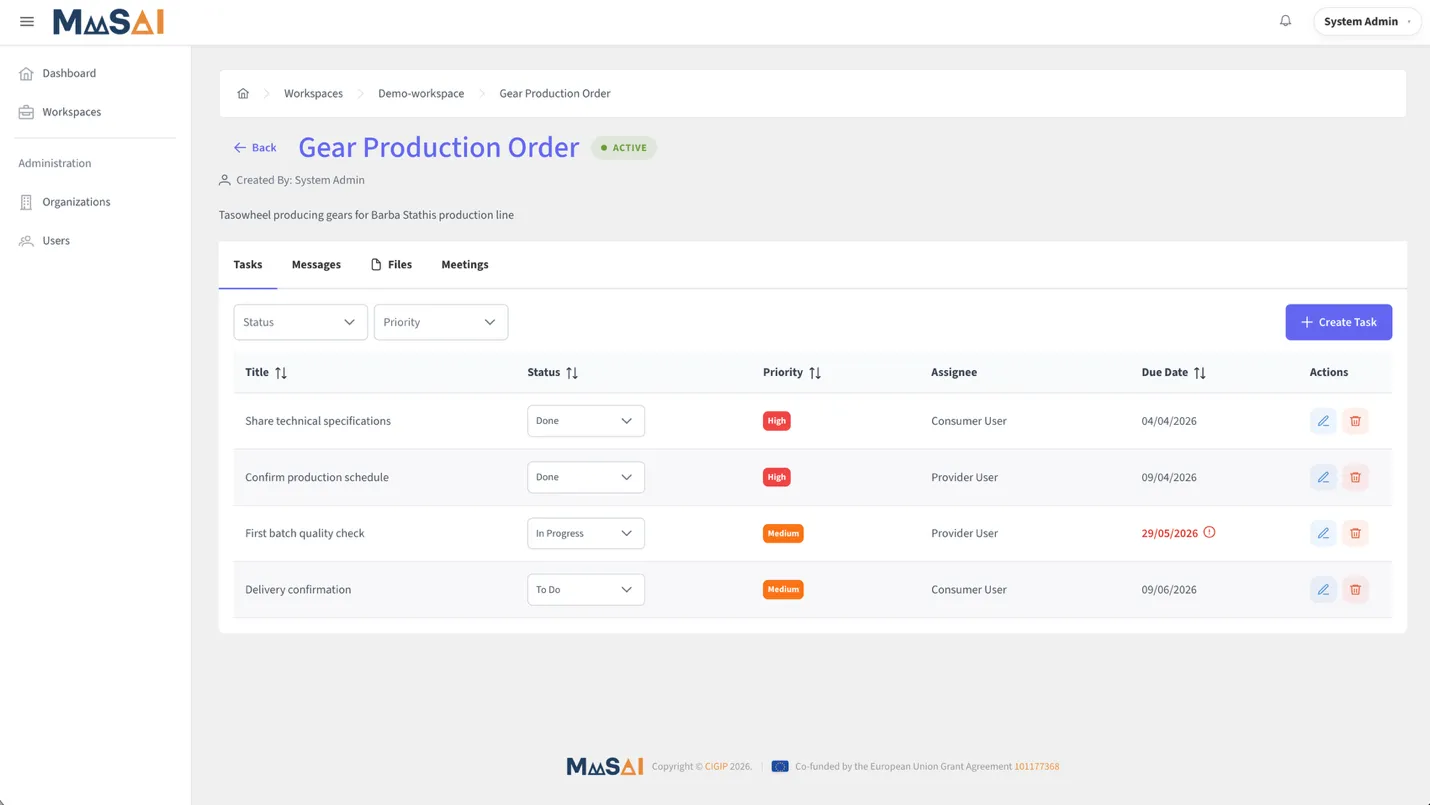

MCH project detail — tasks with status, priority, assignee, and due date — MaaSAI deliverable D6.1.

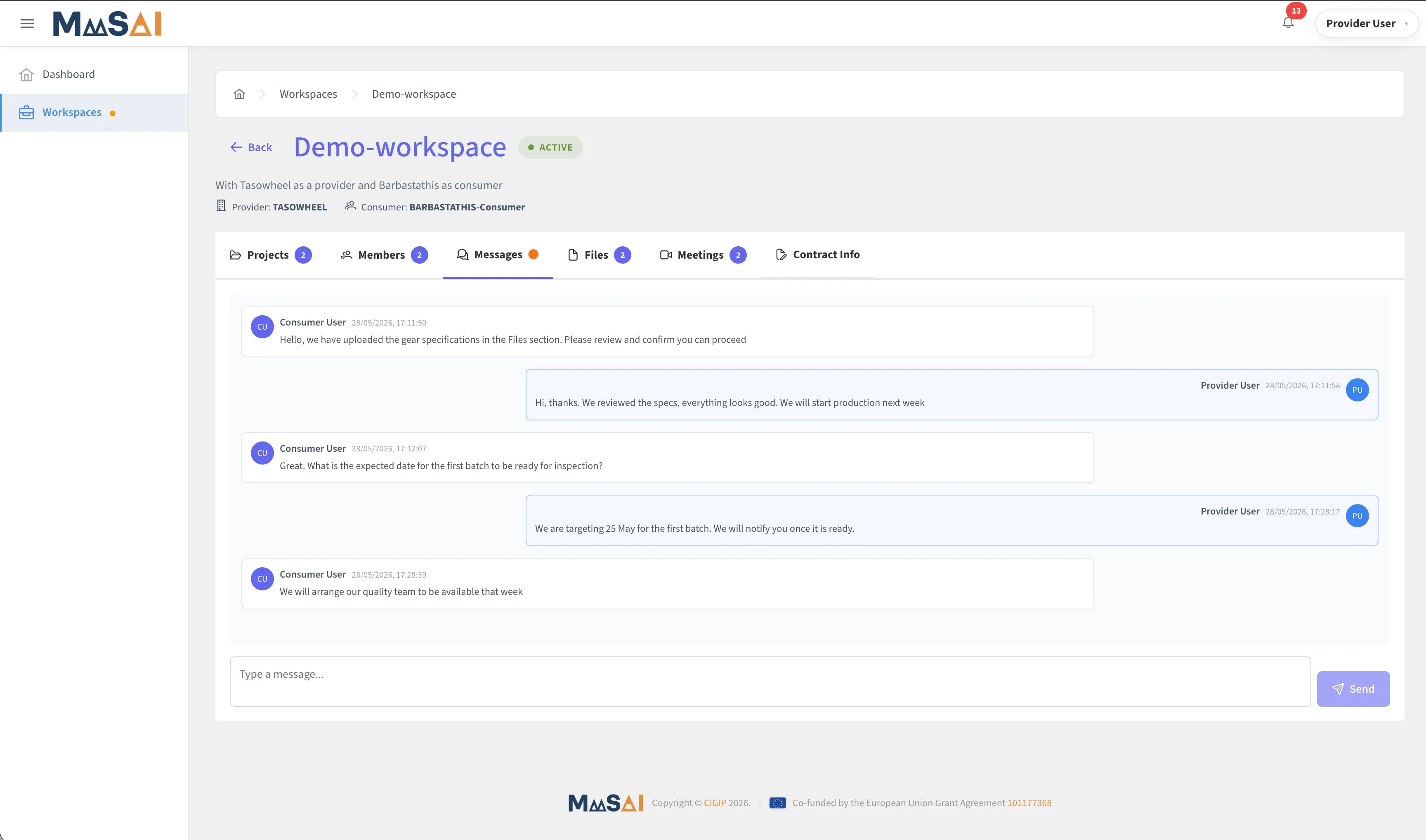

MCH workspace detail — real-time messages between Provider and Consumer — MaaSAI deliverable D6.1.

Deployment & Configuration

All components — frontend, backend, database, identity provider, object storage and WebSocket server — run as Docker containers orchestrated by Docker Compose: the Vue SPA is served by Nginx, the Laravel backend runs under Supervisor, Keycloak uses a dedicated PostgreSQL instance, and MinIO initialises its bucket automatically on first run. Key environment variables configure database credentials, Keycloak realm and client settings, MinIO credentials and bucket name, Soketi application keys, and the Jitsi base URL; no sensitive values are embedded in code.

Requirement	Minimum	Recommended
CPU	2 cores	4+ cores
RAM	4 GB	8 GB+
Storage	20 GB	100 GB+
OS	Linux	Linux

A reverse proxy is recommended.
